Many industrial networks still run copper Ethernet right up to the point where distance, electrical interference, or hazardous voltage potential make copper impractical. A fiber optic media converter solves that problem by bridging copper segments to fiber without redesigning the network around it. For network engineers and integrators specifying equipment for substations, traffic cabinets, or surveillance backbones, picking the right model means understanding fiber types, connector standards, and power requirements before a single port gets wired.
Note: If your deployment needs a hardened or PoE-powered fiber optic media converter, then talk to a Comnet team member before you order. Free pre-purchase design support catches a fiber type, connector, or power class mismatch before it turns into a returned unit and a delayed project. Contact us here: https://comnet.net/contact-us
What Is a Fiber Optic Media Converter?
A fiber optic media converter is a small networking device that connects two dissimilar media types, typically copper twisted-pair cabling and fiber optic cable, so Ethernet traffic can pass between them without loss of signal integrity. It works as a translator: electrical signals on the copper side become light pulses on the fiber side, and convert back again at the receiving end. Because fiber carries data as light rather than electricity, it sidesteps the distance and interference limits that govern copper cabling.
Fiber media converters were introduced to the industry in the 1990s as fiber optic cabling spread into facilities still wired with structured copper, and they remain the simplest way to extend a network without replacing existing infrastructure. Comnet has built fiber media converters for exactly this kind of network extension ever since, with a line that spans commercial-grade models to fully hardened, PoE-capable units for industrial deployments. They are also a common building block for metropolitan area network access and data transport services, where a provider needs to hand off a fiber circuit to a customer's copper-based equipment.
How Fiber Optic Transmission Actually Works
Before specifying a media converter, it helps to understand what happens inside one.
From Electrical Signal to Light
Inside a fiber media converter, a transceiver, often an SFP (Small Form-factor Pluggable) module, takes the electrical Ethernet signal from the copper port and drives an optical transmitter that pulses light down the fiber strand. At the far end, a matching transceiver converts that light back into an electrical signal the connected switch or device can read. The conversion happens at wire speed, with no buffering or routing decisions involved, which is what separates a media converter from a switch.
Why Fiber Outperforms Copper for Distance and Interference
Copper Ethernet is limited to roughly 328 ft (100 meters) before signal degradation becomes a problem. Fiber optic cable experiences far less attenuation, so a fiber converter can carry a Gigabit Ethernet connection for kilometers rather than meters. Fiber is also immune to electromagnetic interference (EMI) and radio frequency interference, which matters in substations, manufacturing floors, petrochemical, and any environment with heavy electrical equipment running nearby.
That combination of distance and interference immunity is why fiber media converters show up so often in industrial, utility, and transportation networks where copper alone would not survive the environment or the run length.
Multimode Fiber vs. Single Mode Fiber: Picking the Right Type
The fiber type on either end of a link determines how far the signal can travel and what optics the converter needs.
Multimode Fiber: Short-Haul and Cost-Effective
Multi mode fiber uses a larger core that allows multiple light paths, which keeps optics and cable costs down but limits distance. A multimode fiber media converter running Gigabit Ethernet typically reaches up to 550 meters, which is plenty for connections within a single building or across a small campus.
Single Mode Fiber: Long-Haul Performance
Single mode fiber uses a narrower core that carries one light path, extending reach substantially. Depending on the model and the optics installed, a single-mode fiber converter can transmit data up to 30 kilometers, and some singlemode SFP-based units are rated well beyond 74.5 miles. For inter-building or inter-site links, such as connecting a traffic cabinet back to a regional operations center, single mode fiber is almost always the right call.
Key Specifications to Check Before You Buy
Once the fiber type is settled, a handful of specifications separate a media converter that fits the application from one that creates problems later.
Speed, Standards, and 100Base-FX Compatibility
Confirm whether the application needs Fast Ethernet (100 Mbps, often specified as 100Base FX) or full Gigabit Ethernet (1000 Mbps). Standard fiber media converters typically support both 10/100 and 10/100/1000 electrical interfaces, with auto-negotiation handling speed detection automatically so installers do not need to set jumpers or DIP switches for basic rate matching. Mismatched standards between the two ends of a link are a common, and avoidable, cause of a connection that simply will not come up.
Connector Type and SFP Compatibility
Fiber optic media converters terminate in a handful of standard connector types, most commonly SC and ST. Many current models use an SFP cage instead of a fixed optical port, which lets the same chassis accept different SFP modules for multimode, single mode, or WDM (Wavelength Division Multiplexing) operation over a single fiber strand. That flexibility means one converter model can be reconfigured for a different distance or fiber type without buying new hardware, which keeps spare parts simpler to manage across multiple sites.
Power Options: Standard, PoE, and PoE++
Some applications need the converter to also power a connected device, such as an IP camera or wireless access point, over the copper side. PoE (Power over Ethernet) media converters add that capability, typically delivering up to 30 watts under the IEEE 802.3at standard. Higher-draw devices like pan-tilt-zoom cameras with built-in heaters often require PoE++ under IEEE 802.3bt, which raises available power to 90 watts per port. Specifying the wrong power class is one of the more expensive mistakes to fix after installation, since it usually means swapping the converter rather than just the cabling.
Managed vs. Unmanaged Media Converters
Unmanaged media converters are plug-and-play: connect copper on one side, fiber on the other, and traffic passes with no configuration required. That simplicity makes them a dependable, low-cost choice for fixed, simple links where nothing needs active monitoring. Managed media converters add VLAN (Virtual Local Area Network) tagging, SNMP (Simple Network Management Protocol) monitoring, and remote configuration, so a network operations team can see link status and get an alert if a fiber strand goes down. For mission-critical links carrying SCADA or video surveillance traffic, the visibility a managed model provides is usually worth the added cost.
Matching the Media Converter to the Application
The right model depends less on brand preference and more on what the link actually needs to do.
Connecting Two Dissimilar Media Types Across a Facility
The most common use case is straightforward: connecting two dissimilar media types so a copper-only switch or camera can reach a fiber backbone. This shows up constantly in campus networks and inter-building data transport services, where running new copper is impractical but fiber already exists in the conduit.
Extending Gigabit Ethernet to Remote Buildings
Gigabit Ethernet media converters let a facility extend a full-speed network connection to a remote building, parking structure, or outdoor enclosure without dropping speed or running an expensive new copper plant. This is a frequent application in transportation networks, where traffic cabinets at intersections need a steady network connection back to a central system, and in Intelligent Transportation deployments generally.
Hardened Deployments for Harsh Environments
Standard commercial-grade converters are built for office and data center conditions. Environmentally hardened models add wider operating temperature tolerance, DIN-rail mounting, and DC power input options, all of which matter in substations, outdoor cabinets, and manufacturing floors where temperature swings and vibration are routine. Power & Utility customers in particular tend to specify hardened models from the start rather than retrofit later.
Comnet Fiber Media Converters Built for Industrial Networks
Comnet manufactures its media converters in the USA, with NDAA-compliant options available for federally funded utility and transportation projects, and builds the line around the same hardened standards used in its Ethernet Switches. That overlap lets network engineers match converters and switches from a single vendor across a project.

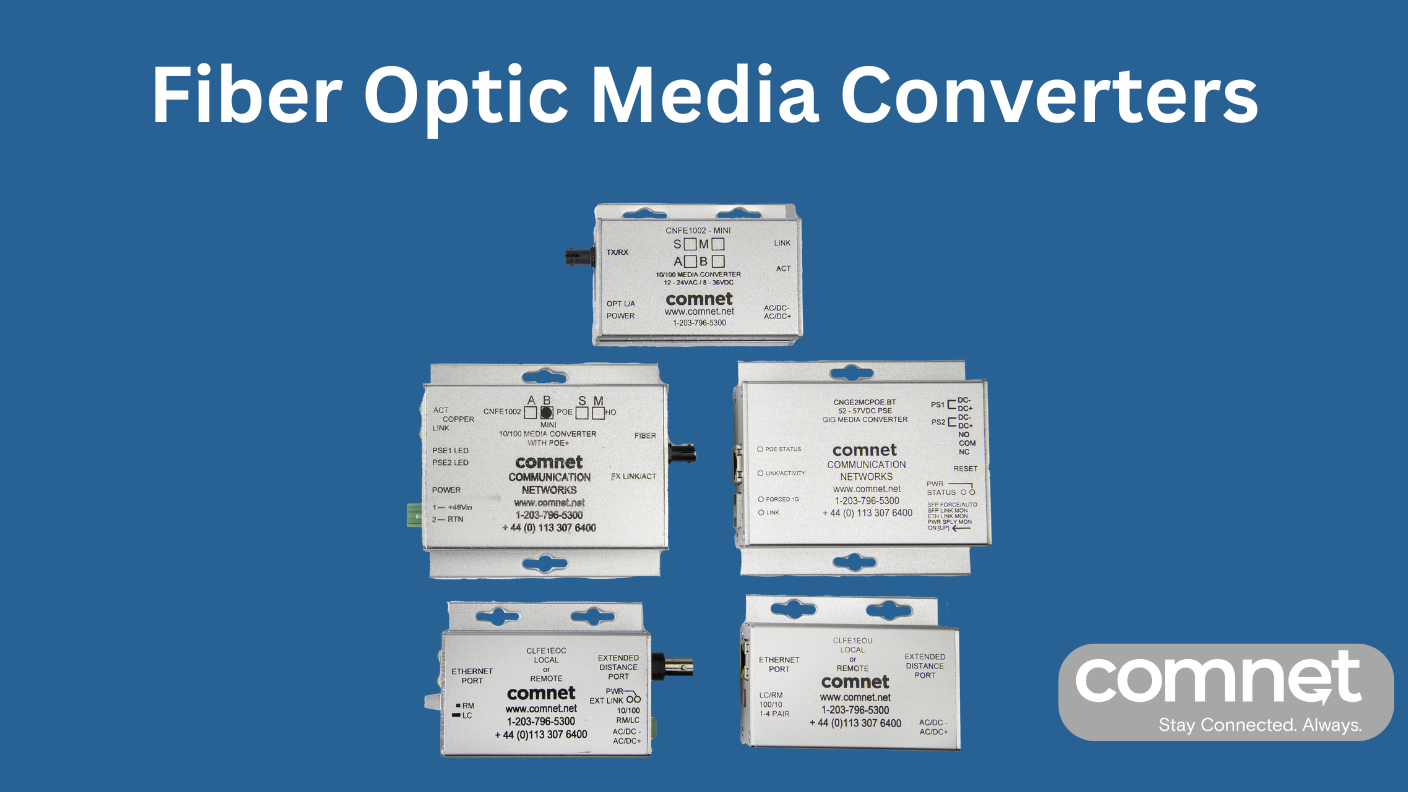

CNMCSFP Series: Flexible Multirate Conversion
The CNMCSFP series is a multirate media converter supporting both 100 Mbps and 1 Gbps speeds through a single SFP port and one RJ-45 copper port. Because the optical side accepts a user-selected SFP module, the same chassis can be configured for multimode, single mode, or WDM operation, which simplifies which spare units a facility needs to keep on hand across a multi-site deployment.
CNMCSFPBT: High-Power PoE for Demanding Devices
For applications that need to power equipment over the copper port, the CNMCSFPBT model is IEEE 802.3bt compliant, delivering up to 90 watts of PoE to connected devices. That headroom covers pan-tilt-zoom cameras, heated camera housings, and wireless access points that standard PoE+ cannot support, through the same multirate SFP architecture as the standard CNMCSFP line.
For the full lineup, including chassis-based and PoE+ models not covered here, see Comnet's Media Converters product page, and for a broader look at general buying considerations, see Comnet's Ethernet media converter guide.
Frequently Asked Questions
These are the questions network engineers most often ask when specifying a fiber media converter for the first time.
What Is the Difference Between an ONT and a Fiber Media Converter?
An ONT (Optical Network Terminal) is the customer-premises device used in a carrier's passive optical network, such as the equipment installed for residential fiber internet service, and it is tied to that carrier's specific optical architecture. A fiber media converter is a point-to-point device used inside a private network to bridge copper and fiber, with no dependency on a carrier's network. If the goal is extending an internal Ethernet network rather than terminating a carrier's fiber service, a media converter is the correct device, not an ONT.
Is There a Fiber to Coax Converter?
Not in the way most people in networking mean it. True fiber-to-coax conversion exists in specialty broadband and cable-TV applications, but for Ethernet networking, coax is more commonly handled by an Ethernet-over-coax network extender, which reuses existing coax cabling to carry Ethernet rather than converting it to fiber directly. For networks that need both fiber extension and reuse of legacy coax runs, pairing a fiber media converter for the fiber backbone with a Comnet network extender for the coax segment is the more practical approach.
What Are Common Problems With Fiber Converters?
The most frequent issues are mismatched fiber type, such as connecting a multimode unit to a single mode strand, reversed transmit and receive fiber polarity, dirty or damaged connector end faces, and power mismatches on PoE models asked to deliver more than they support. Most of these surface immediately as a link that will not come up, which makes them easier to diagnose than the intermittent faults that show up later from a poor splice or a connector that was never properly cleaned.
